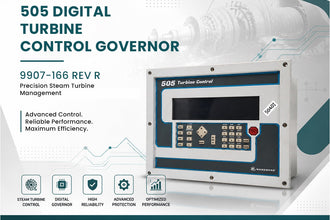

The Woodward 505 Digital Turbine Control Governor (Part Number: 9907-166, Revision R) represents the industry-leading solution for steam turbine control and protection. Manufactured by Woodward Governor Company, this advanced digital governor delivers precise speed control, load sharing, and automatic turbine sequencing for industrial steam turbines powering generators, compressors, pumps, and other rotating equipment. At Aeliya Marine, we are proud to offer this premium turbine control system to power generation facilities, process plants, and marine propulsion system operators worldwide.
Product Overview: Woodward 505 Governor 9907-166 Rev R
The Woodward 505E Digital Turbine Control at part number 9907-166, Revision R, is a comprehensive governor system designed for AC/DC operation at 125 Vdc power input. The unit accepts power inputs ranging from 90-150 Vdc or 88-132 Vac at 47-63Hz with 143VA maximum consumption. Manufactured in India to Woodward's exacting quality standards, this governor carries hazardous area classifications of Class I Division 2 Groups A,B,C,D and Class I Zone 2 Group IIC. The NEMA 4X enclosure rating and temperature code T3C with a maximum ambient temperature of 65°C ensure reliable operation in demanding industrial environments. Software version 2.06-6A provides the control algorithms and protection logic.
Woodward: Over 150 Years of Control Excellence
Woodward stands as one of the most respected names in the control systems industry, with a heritage spanning more than 150 years of innovation in speed control and energy management. From the company's founding with the invention of the first successful water wheel governor to today's sophisticated digital control systems, Woodward has consistently led the industry in developing technologies that optimize the performance and safety of engines, turbines, and compressors across every major industry worldwide.
The 505 governor series represents Woodward's flagship digital turbine control platform, combining decades of turbine control expertise with modern digital signal processing technology. Each generation of the 505 has incorporated improvements in control algorithms, user interface design, communication capabilities, and diagnostic functionality while maintaining the proven control strategies that have made the 505 the most widely specified turbine governor in the world.
Woodward's global manufacturing and support network ensures that customers worldwide can access genuine Woodward components, factory-authorized service, and comprehensive technical documentation. The company's commitment to product support over extended product lifecycles provides turbine operators with the confidence that their control systems will remain supportable for decades after initial installation.
The 505 governor's user interface has evolved significantly over successive generations, incorporating larger displays, improved menu navigation, and enhanced diagnostic presentation that reduces the time required for troubleshooting and configuration. Modern 505 interfaces provide clear, intuitive access to all control parameters, alarm conditions, and historical data, enabling operators and maintenance technicians to quickly assess turbine status and respond to operational issues. The familiar interface design minimizes training requirements for operators transitioning between different 505-equipped turbines.
Key Specifications and Technical Details
The Woodward 505 Digital Turbine Control / 505E Governor is a high-performance turbine control system engineered for precise speed regulation and reliable operation in industrial and marine environments. Designed by Woodward Governor Company, it offers advanced digital control capabilities, hazardous-area certifications, flexible power input options, and dependable performance for critical turbine control applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | 505 Digital Turbine Control / 505E Governor |
| Manufacturer | Woodward Governor Company |
| Part Number | 9907-166 |
| Revision | R |
| Product Type | Digital Turbine Control System / Governor |
| DC Power Input | 90–150 VDC |
| AC Power Input | 88–132 VAC, 47–63 Hz, 143 VA Max. |
| Hazardous Area Classification | Class I Div 2 Groups A, B, C, D / Class I Zone 2 Group IIC |
| Enclosure Rating | NEMA 4X |
| Temperature Code | T3C (Maximum Ambient Temperature 65°C) |
| Software Version | 2.06-6A |
| Control Features | External Trip 2, Controlling Parameter, Analog 4–20 mA I/O |
| Country of Origin | Manufactured in India |
| Weight | 4.500 kg |
| Typical Applications | Steam Turbines, Gas Turbines, Marine Propulsion Systems, Power Generation, Industrial Turbine Control |
The Woodward 505 Digital Turbine Control / 505E Governor is engineered to provide accurate turbine speed control and dependable protection for critical industrial and marine applications. Supporting both 90–150 VDC and 88–132 VAC power inputs, the controller offers flexible installation while its NEMA 4X enclosure and hazardous-area certifications ensure reliable operation in harsh environments. With advanced digital control functions, 4–20 mA analog I/O, external trip capability, and proven Woodward engineering, this unit is an ideal solution for power plants, marine propulsion systems, and industrial turbine automation requiring long-term reliability and precise performance.
The Woodward 505E governor provides comprehensive control functionality for single-valve and multi-valve steam turbines. Speed control modes include isochronous speed control for generator applications requiring precise frequency regulation, and droop speed control for mechanical drive applications where load sharing between multiple turbines is required. The governor's digital architecture enables extremely precise speed regulation with minimal overshoot during load transients.
Automatic turbine start-up sequencing guides operators through the proper start-up procedure, reducing the risk of operator error and ensuring that the turbine is brought to operating speed following manufacturer-recommended practices. The sequencing function manages valve positions, warm-up periods, and speed ramp rates to minimize thermal stress on turbine components during start-up.
Load control functionality enables the governor to maintain turbine power output at a setpoint value or to follow an external load reference signal. For generator applications, load control integrates with utility grid dispatching systems to maintain scheduled power generation levels. For mechanical drive applications, load control prevents turbine overload while maximizing process throughput.
Hazardous Area Classification and Environmental Protection
The Class I Division 2 Groups A,B,C,D classification confirms that the Woodward 505 governor is suitable for installation in areas where flammable gases or vapors may be present under abnormal operating conditions. This classification covers the majority of industrial environments where steam turbines are installed, including petrochemical plants, refineries, and offshore platforms. The Division 2 rating indicates that hazardous concentrations are not likely to exist in normal operation but may occur for limited periods due to equipment failure or process upset.
The Class I Zone 2 Group IIC classification provides equivalent protection under the international IEC classification system, confirming the governor's suitability for global deployment regardless of the regulatory framework applicable in the installation jurisdiction. The IIC gas group designation indicates suitability for the most hazardous gas atmospheres including hydrogen and acetylene.
The NEMA 4X enclosure rating provides protection against dust, water spray, and corrosive agents that could compromise governor operation in outdoor or washdown environments. This rating ensures that the sensitive electronic components within the governor remain protected from environmental contamination throughout the equipment's service life.
Analog I/O and Communication Capabilities
The Woodward 505 governor provides multiple analog 4-20 mA input and output channels for interfacing with process transmitters, actuators, and distributed control systems. Analog inputs receive signals from speed sensors, load transducers, pressure transmitters, and temperature sensors that provide the governor with the process information necessary for closed-loop control. Analog outputs transmit control signals to valve actuators and status signals to plant monitoring systems.
The governor's communication capabilities enable integration with plant-wide control and information systems. Serial communication ports support connection to engineering workstations for configuration, monitoring, and diagnostics. Network interfaces enable the governor to exchange data with plant DCS and SCADA systems, providing operators with visibility into turbine operating conditions from central control rooms.
Applications in Power Generation and Industrial Processes
The Woodward 505 governor serves steam turbine applications across power generation, oil and gas, petrochemical, pulp and paper, and marine industries. In power generation applications, the governor maintains turbine-generator speed at precisely 50 or 60 Hz as required by the connected electrical grid. Load acceptance and rejection transients are managed smoothly to minimize grid frequency disturbances and maintain power quality. Cogeneration facilities rely on the 505 for controlling extraction turbines that simultaneously produce electricity and process steam, requiring the governor to maintain both speed and extraction pressure within tight operating bands.
Mechanical drive applications include centrifugal compressor control in natural gas processing and transmission, pump drives in water treatment and oilfield operations, and fan drives in power plant boiler applications. In each case, the governor provides the precise speed control necessary to maintain process conditions within operating specifications while protecting the turbine from damaging overspeed or overload conditions.
Why Source from Aeliya Marine
Aeliya Marine is a trusted supplier of industrial automation and turbine control equipment, serving clients across the global power generation and process industries. Our inventory includes Woodward governors, turbine protection systems, actuator components, and related accessories. Every component we supply is inspected for condition, revision level, and operational integrity before shipment.
We understand the critical importance of turbine control system reliability and work diligently to provide our clients with genuine, quality-assured components at competitive prices. Our global shipping capabilities ensure that replacement governors and parts reach our clients promptly, minimizing turbine downtime and maintaining power generation availability.
Order the Woodward 505 Governor Today
The Woodward 505 Digital Turbine Control Governor 9907-166 Rev R is available now. Contact Aeliya Marine for competitive pricing and prompt worldwide delivery.
Explore Related Industrial Automation Products
- Stella Gamma CPU GPV Elbau PCB
- Komyo NDIR Gas Analyzer
- Micro Innovation GF1 Touch Panel
- Pepperl+Fuchs DM515 Industrial Monitor
- Hatteland JH-20T16 Display
- Fremo F-50-45 Oil Burner
Frequently Asked Questions
What types of turbines can the Woodward 505 governor control?
The Woodward 505E governor is designed for steam turbines serving generator and mechanical drive applications. It supports both single-valve and multi-valve turbine configurations and provides speed control, load control, and automatic start-up sequencing functionality.
What power supply options does the 9907-166 support?
The governor accepts both DC power (90-150 Vdc) and AC power (88-132 Vac at 47-63Hz) with maximum consumption of 143VA. This dual-power capability provides flexibility for different installation environments.
What hazardous area classifications does this governor carry?
The 9907-166 carries Class I Division 2 Groups A,B,C,D and Class I Zone 2 Group IIC classifications, confirming suitability for installation in industrial environments where flammable gases may be present under abnormal conditions.
What enclosure protection rating does the governor have?
The NEMA 4X enclosure rating provides protection against dust, water spray, and corrosion, making the governor suitable for both indoor and outdoor installations including washdown environments.
Where can I purchase the Woodward 505 Governor 9907-166?
The Woodward 505 Digital Turbine Control Governor is available from Aeliya Marine. We provide quality-assured components with worldwide shipping. View the product page for details.
What is the maximum ambient temperature for this governor?
The governor is rated for maximum ambient temperature of 65°C with temperature code T3C, making it suitable for installation in hot climates and in equipment rooms with limited ventilation.
